  • -40%
  • New
DENTALNESS OBTURATION PEN
Add to wishlist
  • DENTALNESS OBTURATION PEN
  • DENTALNESS OBTURATION PEN
  • DENTALNESS OBTURATION PEN
  • DENTALNESS OBTURATION PEN
  • DENTALNESS OBTURATION PEN
  • DENTALNESS OBTURATION PEN
Product Catalogue
Download Catalogue

Shipping Policy

Return & Refund Policy
₹16,665.00
₹9,999.00Save 40%
Tax included

DENTALNESS OBTURATION PEN IS A DOWNPACK OBTURATION SYSTEM WITH TEMPERATURE CONTROL AND EXTRA BATTERY UNIT

Quantity
Add to wishlist

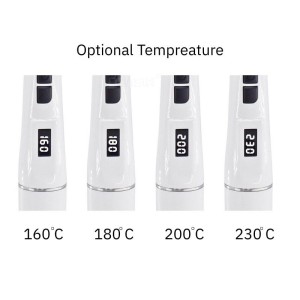

  • Option temperature:160-180-200-230℃ .
  • Large capacity battery, double battery charging and spare.
  • Holding comfortable, easy to use.
  • Wireless design, reduce wrist fatigue
  • Own heating protection function, the heating maximum time of heater is 10S, more efficient and secure.
  • Heating key 360°stereo operation, accurate top control, 3D filling more thoroughly.

1) Design

Simple design

Convenience in application

2) Tips

Four Tips - F, FM, M, ML

F: #45/02, FM: #50/04, M: #55/06, ML: #55/08

3) Time & Temperature

Needle type & temperature mode can be adjusted making the gutta percha point more contact

Short heating time, up to 230 degree within 5S

4) Technique

Vertical condensation technology

5) Charging

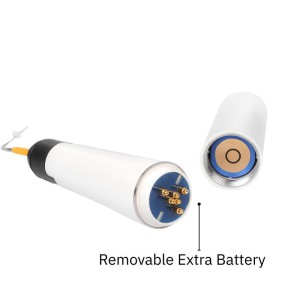

Double batteries to replace,convenient use

6) Disinfection

Autoclavable Tips

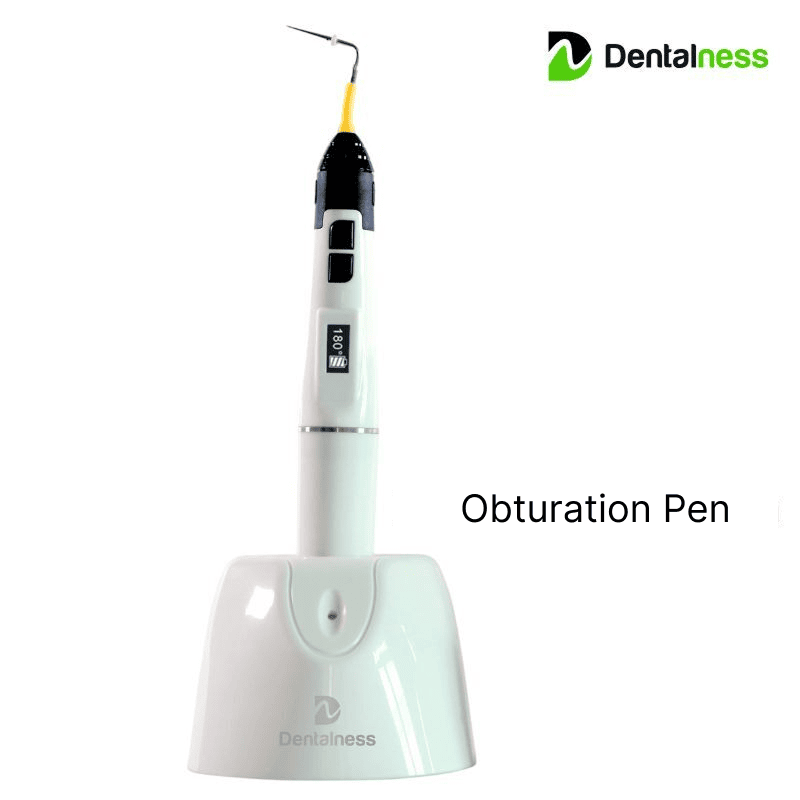

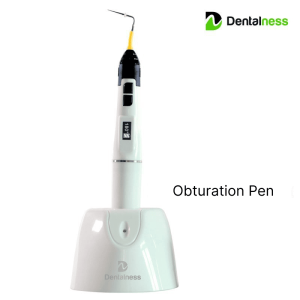

DENTALNESS OBTURATION PEN

DENTALNESS Obturation Pen System is a Cordless system used for Warm Vertical Compaction while doing RCT. Using Obturation Pen, one applies pressure in a vertical direction to the heat softened gutta percha and thereby causes it to flow and to fill the entire lumen of the canal.

It can be heated upto 200° C in 3sec.

FEATURES:

  • Slim design, light body, comfortable grip to reduce your exhaustion and easy handling.
  • The needle type and temperature mode can be adjustable, make the gutta point more compact.
  • Short heating time, up to 150 degree within 2s
  • Adopting gutta percha vertical condensation technology
  • Double batteries, convenient to replace, saving chairside time

FOR EFFECTIVE WARM VERTICAL COMPACTION:

  • A continuous tapering funnel should be present from the root canal orifice to the root apex.
  • Root canal should be prepared so that it flows with the shape
  • Shape of Apical foramen should not be changed or moved.
  • Apical foramen should be kept as small as is practical so that excess gutta percha will not be forced through it during vertical compaction
  • Li-ion chargeable Battery：3.7V 2600mAh
  • Heang TIME 5s ：
  • Working temperature 160 ：℃℃ ℃ ℃ , 180 200 230
  • Input voltage 100V-240V AC
  • Output voltage DC 5V,2A
  • Heat plunger size F FM
  • Operang me connuous ：use 1.5H

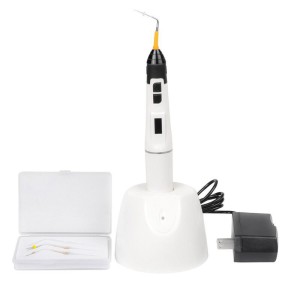

No. Accessories Quantities
1 Main Body 1
2 Charging Base 1
3 Adapter 1
4 Extra Battery 2
5 Wrench 1
6 Pen Tips 4

STEP 1:

Preparation -gutta percha point

STEP 2:

Prepatration -hand plugger:

Prepare 2-3 plugger to compact gutta percha ,mark root canal length by rubber stopper.

STEP 3:

Preparation -pen tip:

Select proper pen tip for root canal

STEP 4:

Dry root canal:

Dry the root canal using paper point

STEP 5:

Select the gutta percha point.

STEP 6:

Mark the length of pen tip

STEP 7:

Insert gutta percha point:

Coat 3mm from the tip with sealer, insert in to root canal with pumping action

STEP 8:

Removal of excess gutta percha

Cut the excess gutta percha by pen tip.

STEP 9:

Heating & insertion:

Heat and insert pen tip with gutta percha to 4-6mm short of the working length

(NOTE:High temperature mode is recommended for this step because of too much gutta)

STEP 10:

Compaction:

Stop the heating and maintain the pressure about 10 secs

STEP 11:

Removal of pen tip:

Removal after heating the pen tip for 1~2 seconds to avoid gutta percha come out with pen tip

STEP 12:

Compact

Compact the warmed gutta percha with the plugger.

(NOTE:Its proper to use low temperature mode because of less gutta)
