DENTALNESS BLZ INTRA ORAL SCANNER

₹416,666.67

₹250,000.00Save 40%

Tax included

The BLZ INO200 intraoral scanner is known for its fast scanning speed, specifically 30 seconds for a full arch scan. It utilizes optimized algorithms and imaging technology to achieve this speed while maintaining high accuracy.

Brand : BLZ Dental

Share this :-

Features

Fast Scanning: The INO200 can complete a full arch scan in approximately 30 seconds.
High Accuracy: Optimized algorithms and imaging technology contribute to precise digital impressions.
Instant Heating: The scanner is ready for use immediately after powering on.
Detachable Cable: This feature simplifies maintenance and cleaning.
Smaller Tips: The scanning tips are designed to be compact (17x20mm) for comfortable use.
Lightweight: The scanner weighs only 270g, enhancing user comfort during scanning.

Description

The scanner also boasts other features that contribute to an efficient and user-friendly experience, such as a compact and lightweight design, motion control, and AI technology for automated data cleanup during scanning. The intraoral scanner hardware work together with the self-developed scan software to provide custom setting, ensure excellent scan experience and amazing digital impression.

Key Specifications

Scan Depth	25mm
Weight	270g
Size	264mm × 37mm × 46mm
Tip Size	20mm × 17mm
Motion Control	Yes
A.I. Tech	Yes
Output Format	STL, PLY, OBJ
Power Supply	DC12V 2A
Light Source	LED
Interface	USB 3.0

Packaging

Scanner Unit: The core component of the system, used for capturing digital impressions.

Cable: Connects the scanner to the computer or power source.

Scanning Tips: These are disposable or autoclavable attachments that fit onto the scanner head, allowing for different scanning angles and depths. The INO200 comes with four different Tips.

Calibrator: Used to ensure the scanner is accurately calibrated for optimal performance.

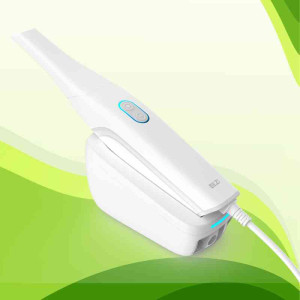

Cradle: Provides a stable and convenient way to store the scanner when not in use.

USB stick: For Software Installation.

Direction To Use

Here's a more detailed breakdown of the usage:

1. Software Installation:

Insert the software USB stick into your computer.
Locate and run the installation package.
Follow the on-screen prompts to install the software, selecting your language and installation location.
Once installed, you'll see shortcuts for the main software and calibration software.

2. Scanner Setup:

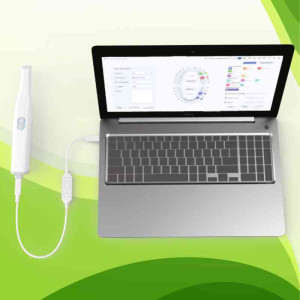

Connect the scanner to your computer using the data cable (ensure it's plugged into a USB 3.0 port).
Connect the power cable and turn on the scanner.
If using a laptop, ensure it's plugged into a power source.

3. Scanning:

Open the scanning software.
Create a new order and enter the necessary patient information, including patient details, order number, doctor's name, teeth numbers, treatment type, and implant information (if applicable).
Position the scanner's camera (aligned with the occlusal surface) within the patient's mouth.
Start scanning, moving the scanner smoothly from side to side, capturing the lingual and buccal surfaces.
Pay attention to soft tissue areas that may interfere with the scan.
When scanning the bite, have the patient close their mouth and bite down while you continue scanning.
The scanner's smart motion control allows you to orient the digital model on the screen by simply rotating the scanner while holding the control button.

4. Additional Tips:

Ensure the scanner is properly calibrated before use.
Move the scanner smoothly and avoid jumping around during the scan.
Consult the software's user manual or help files for more detailed instructions and troubleshooting tips.

Warranty

18 months
